King Canada

Shears, Brake & Roll

Model: TBM407

Mfr. No.: KC-3020

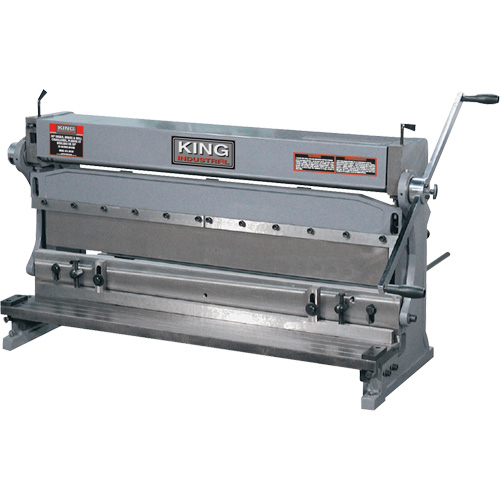

  • Shears, Brake & Roll Duraquip Inc

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,406.00 / Each

0 In Stock

Ships in 5-8 weeks

Shipping times are based on information available at the time of order and are subject to change.

Shear Max. Thickness

22 Gauge

Shear Max. Length

30"

Shear Material Stop Range

1/2"- 25"

Brake Max. Thickness

22 Gauge

Brake Shut Height

4-1/2"

Brake Material Stop Range

1/2"- 25"

BRAKE Max Thickness (mild Steel)

22 gauge

BRAKE Male Die Sizes

10", 6", 4", 3", 2", 1"

SLIP ROLL Number Of Rolls

3

SLIP ROLL Max Thickness (mild Steel)

22 gauge

SLIP ROLL Max. Length

30"

SLIP ROLL Roller Diameter

1 1/2"

SLIP ROLL Min. Radius

3/4"

Overall Dimensions

39" L x 16" W x 24" H

Weight

290 lbs.

  • Sturdy cast iron frame
  • Dual edge, reversible shear blade
  • One female "V" shaped die
  • Slip rolls are precision turned, ground and polished with wire grooves
  • Includes: Adjustable length stop, height stop block and extension bars with 90° angles
