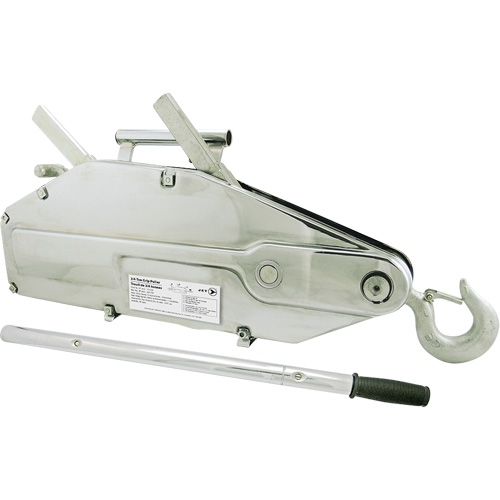

JGP-75A Sumo Series 3/4 Ton Grip Puller Without Cable

Model: NIS577

Mfr. No.: 111136

  • JGP-75A Sumo Series 3/4 Ton Grip Puller Without Cable Duraquip Inc

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$649.00 / Each

0 In Stock

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

For Use With

  • 5/16" ASA & IWRC Wire Rope

Rated Lifting Capacity

3/4 Tons (1760 lbs.)

Rated Pulling Capacity

1.4 Tons (2860 lbs.)

Effort At Rated Load

64 lbs.

Operating Rope Advance

2.36"

Standard(s) Met

ANSI B30.21

Dimensions (L X W X H)

16-3/4" x 2-1/2" x 9"

Telescopic Handle Length

29"

Weight

35.27 lbs. (16 kg)

Country Of Origin

China

  • Compact high strength steel housing
  • Lightweight, simple and safe to operate
  • May be used in any position to lift, pull, lower, or stretch heavy loads
  • The rope clamp system is easily disengaged with a lever, allowing smooth installation of the wire rope
  • Overload protection is built-in with a shear pin in the forward lever, which will break when overloaded
  • Design enables wire rope to be fed through 2 sets of wear resistant interlocking jaws by a single operating lever
